| Part | SKU | Description | Qty |
|---|---|---|---|
| Switch | C9200L-48P-4G-E | Catalyst 9200L 48-port PoE+ 4x1G uplink Switch, Network Essentials | 1 |
| PSU | PWR-C5-1KWAC | Catalyst 9200L switch 1000W power supply | 1 |
| License | C9200L-DNA-E-48-3Y | C9200L 48-port switch DNA function 3-year license | 1 |

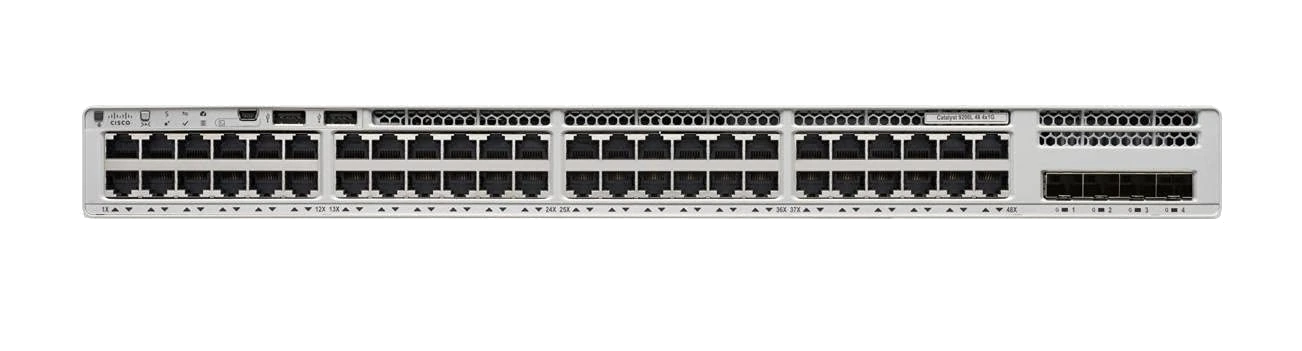

C9200L-48P-4G-E, Cisco Catalyst 9200L 48-Port PoE+ Switch
Brand: Cisco
Model: C9200L-48P-4G-E
In Stock
Original New
Our Price USD $2,570
100% Genuine
Original, factory new seal.
1 Year Warranty
Manufacturer based, enterprise-grade, on default.
Quantity:
Subtotal: $2,570
Series Overview
Flexible Power & Sustainable Design
From PoE+ (30W) on up to 48 ports to IEEE 802.3bt Class 6 (60W) and Cisco UPOE support, the series adapts to diverse deployment needs. C9200CX models offer fanless operation and flexible power inputs (AC/LVDC/HVDC), enabling migration to energy-efficient DC micro-grids powered by renewable sources.
Resilient Architecture & Intelligent Security
Built for business continuity with field-replaceable units (FRU), redundant power/fans, and modular uplinks (C9200). Enhanced security features AES-128/256-bit MACsec encryption, policy-based segmentation, and trusted platform capabilities across the entire series.
Software-Defined Simplicity & Layer 3 Agility
Unlock automation from edge to cloud with Cisco SD-Access and Cisco ISE integration. Full Layer 3 routing (OSPF, EIGRP, ISIS, RIP, BGP*) plus optional 160 Gbps backplane stacking deliver scalable performance, while Cisco Catalyst Center provides proactive network assurance.
Product Key Features
01
High Performance
Delivering 104 Gbps switching capacity and 77.38 Mpps forwarding rate for seamless, high-speed network operations.
02
Massive Table Capacity
Equipped with 16K MAC address table and 11K routing table entries to effortlessly support large-scale network deployments.
03
PoE+ Power Delivery
Supports 802.3at with up to 30W per port, simplifying deployment of IP phones, wireless APs, and security cameras without extra power adapters.
04
Full Layer 3 Routing
IPv6 ready with comprehensive support for Static, RIP, EIGRP, ISIS, OSPF, and BGP protocols for dynamic routing flexibility.
05
Advanced Layer 2 Features
Robust VLAN support with MSTP, PVST, and PVST+ protocols to optimize your network topology and redundancy.
06
Enterprise-Grade Security
IEEE 802.1AE (MACsec) compliant, featuring 128-bit AES encryption for maximum link security.
Standard BoM (What are in the box)
Power Supply Models
| Model | Primary power supply | Default or upgrade | Available PoE | Optional secondary power supply | Available PoE |
|---|---|---|---|---|---|
| C9200L-48P-4G | PWR-C5-715WDC | Upgrade | 485W | PWR-C5-715WDC | 970W |
| C9200L-48P-4G | PWR-C5-1KWAC | Default | 740W | PWR-C5-1KWAC | 1440W |
Supported Stacking Options
| Model | Stacking support | Stacking bandwidth support | Optional stacking hardware | Number of members | Supported stack members |
|---|---|---|---|---|---|
| C9200L SKUs | StackWise-80 | 80 Gbps | C9200L-STACK-KIT | 8 | Other C9200L models with same license level |
