| Part | SKU | Description | Qty |
|---|---|---|---|

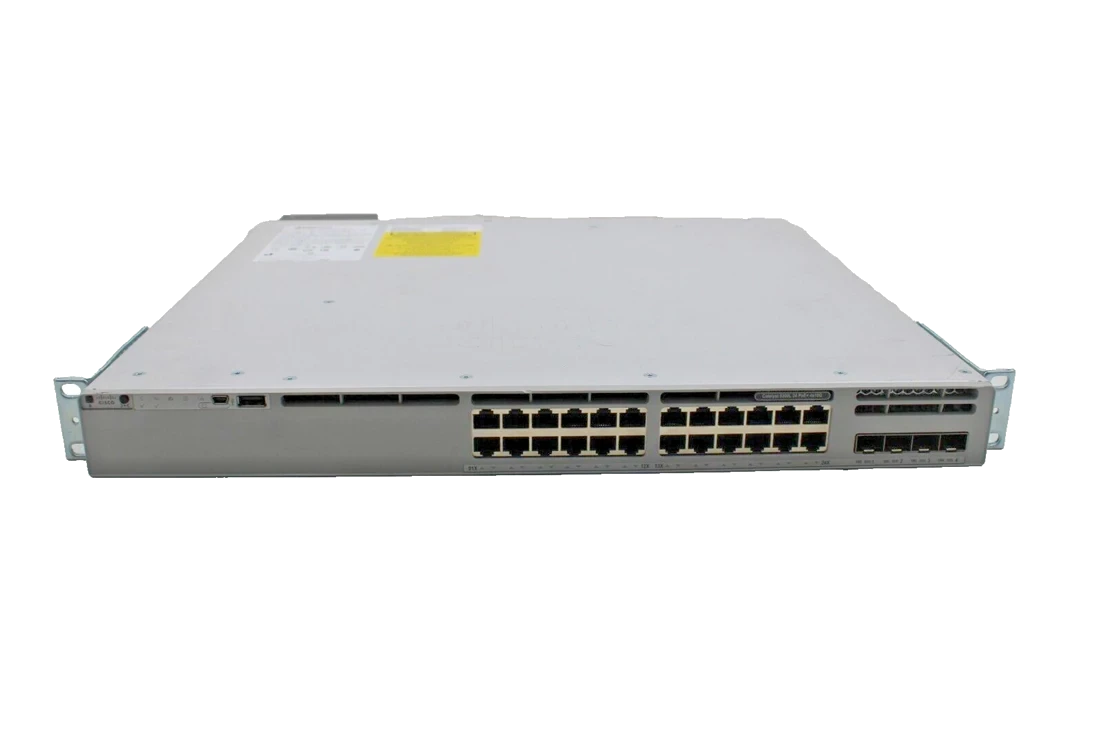

| Switch | C9300L-24P-4X-E | Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Network Essential | 1 |
| PSU | PWR-C1-715WAC-P | Catalyst 9300L switch 715WAC Platinum-rated power supply spare | 1 |
| License | C9300L-DNA-E-24-3Y | C9300L Cisco DNA Essential, 24-port, 3 Year Term license | 1 |
Series Overview
Up to 1 TB of stacking bandwidth
With Cisco StackWise-1T, Catalyst 9300 Series switches are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture.
Flexible and dense uplink
Offering with 100 Gigabit Ethernet (G), 40G, 25G, Multigigabit, 10G, and 1G modular uplinks.
SD-Access Reday
Purpose-built for Cisco DNA Center and SD-Access, enabling intent-based networking through automated policy and segmentation.
Product Key Features
01
High Performance
Delivering 128 Gbps switching capacity and 95.23 Mpps forwarding rate for seamless, high-speed network operations.
02
Massive Table Capacity
Equipped with 32K MAC address table and 32K routing table entries to effortlessly support large-scale network deployments.
03
PoE+ Power Delivery
Supports 802.3at with up to 30W per port, simplifying deployment of IP phones, wireless APs, and security cameras without extra power adapters.
04
Full Layer 3 Routing
IPv6 ready with comprehensive support for Static, RIP, EIGRP, ISIS, OSPF, and BGP protocols for dynamic routing flexibility.
05
Advanced Layer 2 Features
Robust VLAN support with MSTP, PVST, and PVST+ protocols to optimize your network topology and redundancy.
06
Enterprise-Grade Security
IEEE 802.1AE (MACsec) compliant, featuring 256-bit AES encryption for maximum link security.
Standard BoM (What are in the box)
Power Supply Models
| Model | Primary power supply | Default or upgrade | Available PoE power | With 350W secondary PS | With 715W secondary PS | With 1100W secondary PS |
|---|---|---|---|---|---|---|
| C9300L-24P-4X | PWR-C1-715WAC-P | Default | 505W | 720W | 720W | 720W |
Supported Stacking Options
| Model | Stacking support | Stacking bandwidth support | Optional stacking hardware | Number of members | Supported stack members |
|---|---|---|---|---|---|
| C9300L SKUs | StackWise-320 | 320 Gbps | C9300L-STACK-KIT Or C9300L-STACK-KIT2 | 8 | Stacks with other Catalyst 9300L and 9300LM models with same license level |
Network Modules
| Product number | Product description |
|---|---|
| C9300-NM-4G | Catalyst 9300 4 x 1GE SFP Network Module |
| C9300-NM-8X | Catalyst 9300 8 x 10G/1G SFP+ Network Module |
| C9300-NM-2Q | Catalyst 9300 2 x 40GE QSFP Network Module |
| C9300-NM-2Y | Catalyst 9300 2 x 25G/10G/1G SFP28 Network Module |
| C9300-NM-4M | Catalyst 9300 4 x 10G/mGig copper Network Module |
| NM-BLANK-T1 | Cisco Catalyst Type 1 Network Module Blank, spare |
Official Resource Links
Why We Don’t Offer Online Checkout
At RelayVera, we serve B2B channel partners—resellers and system integrators—not direct consumers. Enterprise procurement involves formal quoting, purchase orders, contract terms, and cross-border logistics. These complexities cannot be handled through a standard shopping cart.
